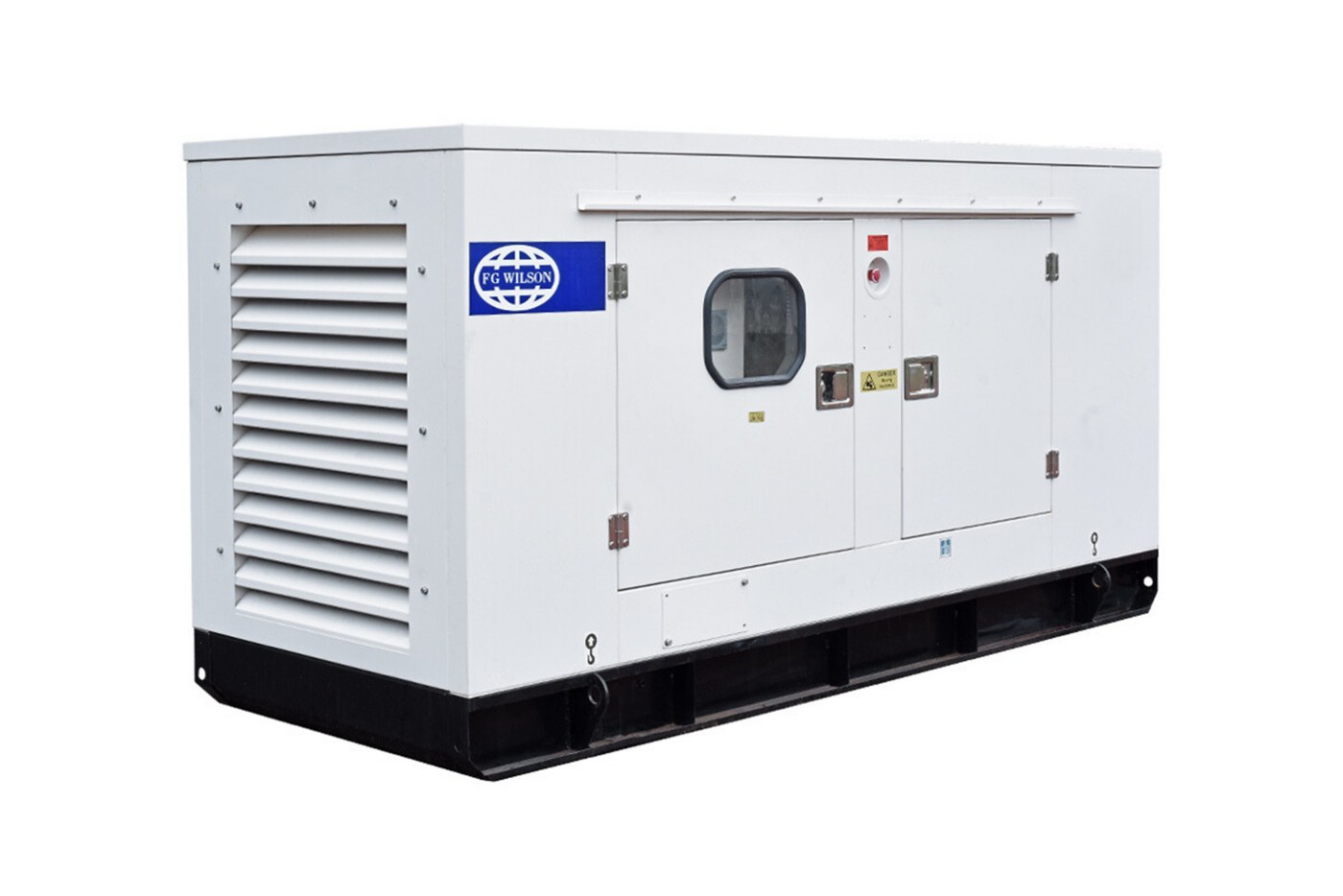

FG Wilson · CPCB IV+
FB60-4A
58.5 kVAPrime power at 50 Hz
- Leyland engine
- H4G4DE60
- Fuel tank
- 140 litres
- Supply
- 415/240 V

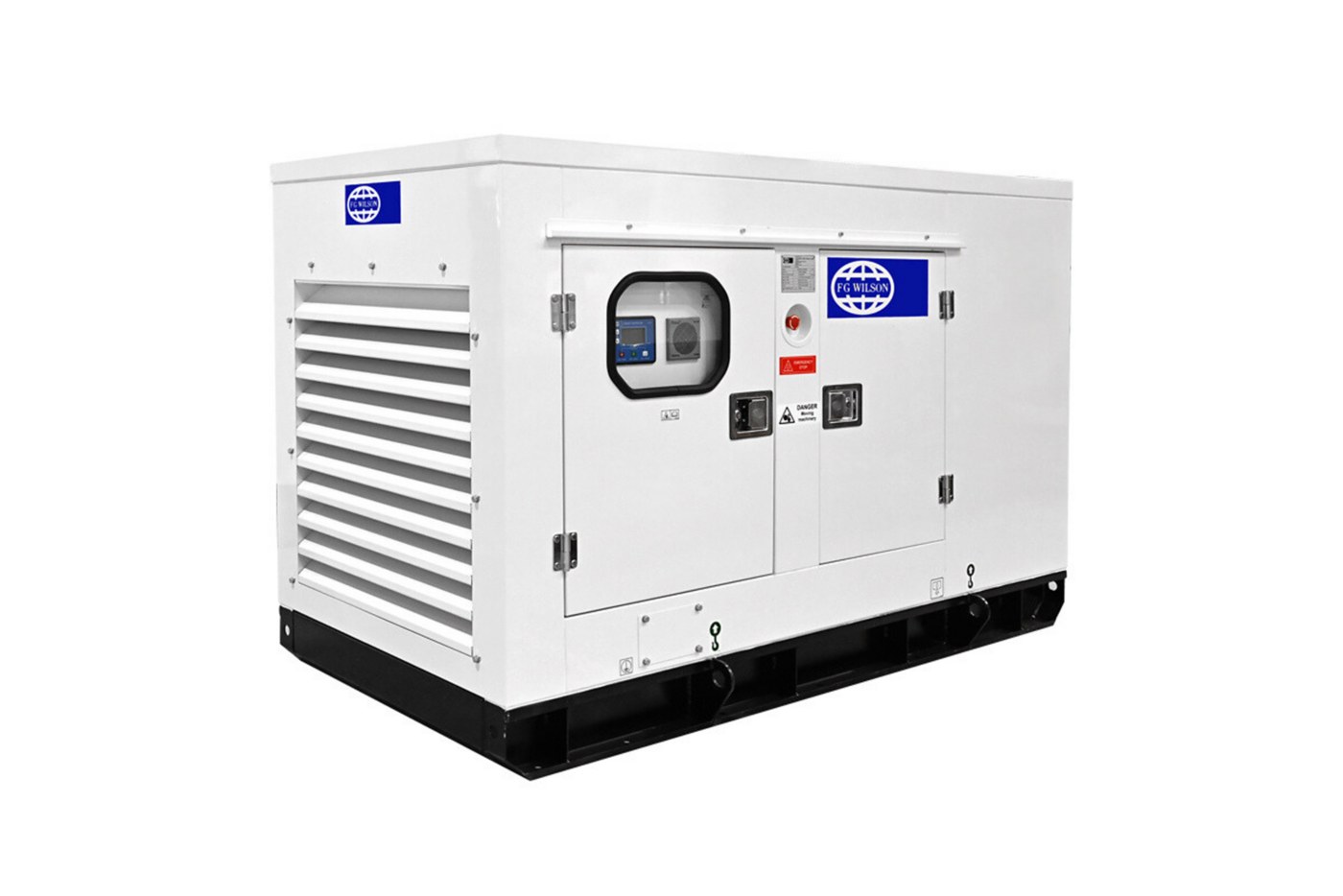

FG Wilson · CPCB IV+ diesel generatorFG Wilson FB40-4A
FG Wilson FB40-4A
40 kVA prime power.
An FG Wilson diesel generator with the Leyland H4G4DE40 engine and Leroy Somer LSAP 42.3 F alternator. Explore the published specification with FW Power.
- Prime rating
- 40 kVA at 50 Hz
- Engine
- Leyland H4G4DE40
- Output voltage
- 415/230 V
- Emissions
- CPCB IV+
FG Wilson FB40-4A
Smaller commercial loads
Start with essential circuits and the largest starting load. A workshop or commercial premises with a modest running demand can still require extra transient capability for a compressor or pump. Share the starting method as well as the running power.
The 3.84-litre Leyland engine operates at 1,500 rpm. Its standard equipment listing includes a 85-litre fuel tank and 63 A circuit breaker. Our team can review how these fit your load, required running time and installation.
What to establish before ordering
- Required duty, operating hours and actual load profile
- Motor starting, load steps and voltage-dip limits
- Site location, climate, access and available space
- Changeover, distribution, protection and earthing scope
- Noise criteria and fuel autonomy requirements
- Applicable emissions certification and final documentation
Published manufacturer dataFB40-4A
FB40-4A
technical specification.
Use these details to compare models and prepare an enquiry. Confirm the supplied configuration, site derating and operating limits against the approved technical documents.
The rating below is prime power. A separate standby rating is not stated here. Dimensions, weight, fuel consumption and noise measurement conditions are provided in the model PDF below.
Alternator IP23 is an alternator classification, not a weatherproof rating for the complete generator enclosure.
Ask our team about this specification| Manufacturer | FG Wilson |
|---|---|
| Generator model | FB40-4A |
| 50 Hz prime power | 40 kVA |
| Frequency | 50 Hz |
| Voltage | 415/230 V |
| Engine speed | 1,500 rpm |
| Emissions classification | CPCB IV+ |
| Engine make | Leyland |
| Engine model | H4G4DE40 |
| Displacement | 3.84 litres |
| Governor | Electronic A0 |
| Bore × stroke | 104 × 113 mm |
| Compression ratio | 16.5:1 |
| Alternator brand | Leroy Somer |
| Alternator model | LSAP 42.3 F |
| Alternator protection | IP23 |
| Alternator insulation | Class H/H |
| Voltage regulation | ±1% (published alternator specification) |
| Fuel tank capacity | 85 litres |
| Listed circuit breaker | 63 A |
Technical documentsYour FB40-4A
Your FB40-4A
datasheet, in one place.
Download the model technical datasheet with generator, engine, alternator and fuel-system information, plus dimension drawings.
Check the final supplied configuration and installation requirements with TEAM FW Power before ordering.
The complete power solutionConfigure the package
Configure the package
around the application.
Discuss generator supply, changeover, delivery and service with TEAM FW Power. Controls, fuel arrangements, acoustic requirements and site connections should be agreed as part of the quotation.
CPCB IV+ and your project
This model is listed as CPCB IV+ compliant. That classification must be checked against your destination and intended use; it is not a statement of UK/EU Stage V approval.
For an automatic standby application, confirm the engine-start interface and transfer sequence. A conventional ATS introduces a changeover interruption. Tell us about any loads that require UPS support or another continuity solution.
Running time depends on usable fuel capacity and the actual load. The listed tank volume alone does not establish a guaranteed number of operating hours.
TEAM FW PowerLet’s specify your
Let’s specify your
FB40-4A properly.
Tell us what you need to power, where it will operate and when you need it. Our team can discuss generator selection, changeover equipment, delivery, installation and ongoing service.
Compare nearby ratings
Explore your alternatives.
Compare the published prime outputs, then let our team help assess the application.
FG Wilson · CPCB IV+
FB82.5-4A
82.5 kVAPrime power at 50 Hz
- Leyland engine
- H4G4DE82
- Fuel tank
- 155 litres
- Supply
- 415/230 V
FG Wilson · CPCB IV+
FB100-4A
100 kVAPrime power at 50 Hz
- Leyland engine
- H4G4DE100
- Fuel tank
- 250 litres
- Supply
- 415/230 V
